Gas Furnaces

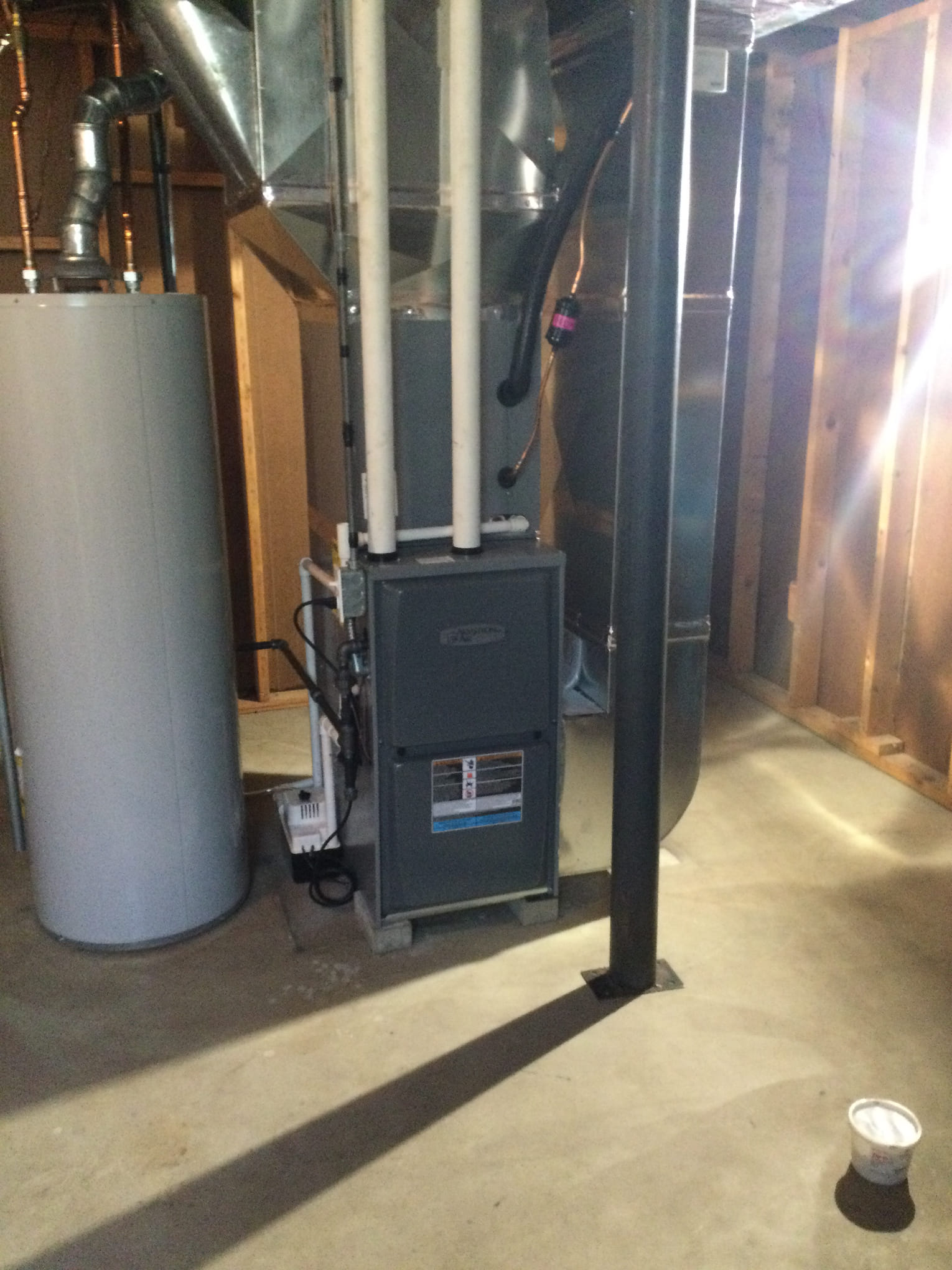

Installation Details: EQUIPMENT: Armstrong A95UH1E070B12s-06; Serial: 5921M16191 series high efficiency furnace - 95% AFUE efficiency rating - Stainless steel heat exchangers Armstrong 4SCU13LB136P-6; Serial: 1622E10821 series outdoor condensing unit - 13 SEER efficiency rating (14 SEER as a packaged system) ADP 36BXCA; Serial: 7122E226001 series indoor evaporator coil Little Giant condensate pump Honeywell Focus Pro 5000 non-programmable thermostat SCOPE OF WORK: 1. Remove and dispose of the existing furnace, condensing unit, line-set, and evaporator coil. 2. Provide and install the new furnace and evaporator coil in the same location adapting to the existing supply air duct work. 3. Provide and install a new custom built return air filter boot and duct transition adapting to the new furnace. 4. Adapt the new furnace to the existing gas piping and electrical circuit. - Install a new shut gas shut off for the water heater. 5. Provide and install new PVC intake and exhaust piping through the side wall of the home. 6. Provide and install the new outdoor condensing unit in the same location on a field supplied composite pad. 7. Adapt the new condensing unit to the existing electrical circuit and disconnect switch providing a new electrical whip. 8. Provide and install new copper refrigeration piping from the indoor evaporator coil to the outdoor condensing unit. 9. Install a new condensate pump and drainage piping from the new furnace and evaporator coil terminating to the utility sink. 10. Provide and install a new Honeywell Focus Pro 5000 non programmable thermostat in the same location as the existing thermostat. 11. Start the new equipment and check system operation.

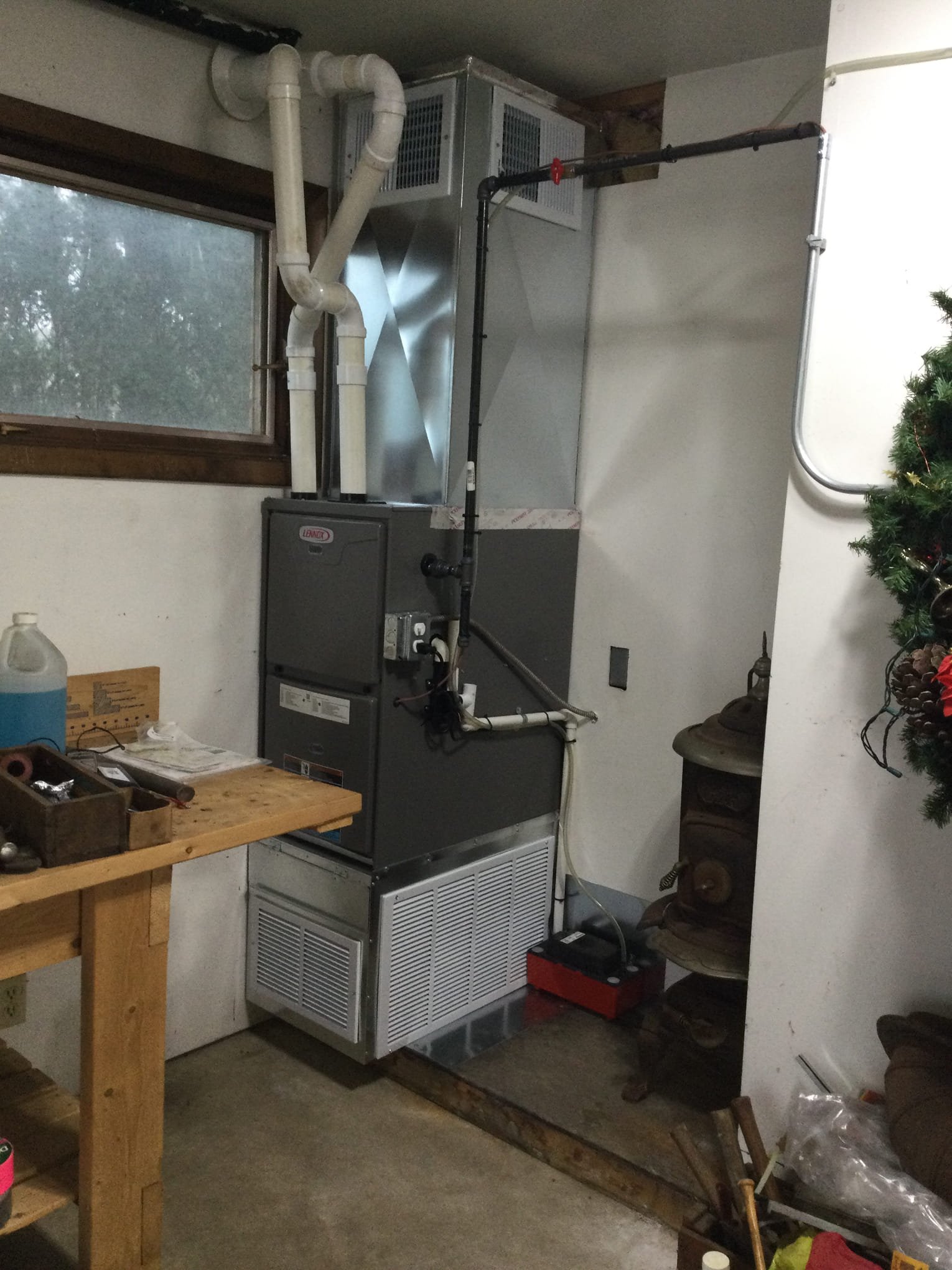

SCOPE OF WORK: 1. Remove the existing Lennox furnace located in the garage and cap the three supply branch runs entering the home at the wall. - Cap the supply air register serving the garage from the existing main Lennox furnace. 2. Provide and install new plywood sheeting over the existing plywood return air box. 3. Provide and install a new return air filter cabinet base onto the plywood base. 4. Re-install the existing Lennox furnace onto the new filter cabinet base and adapt to the existing supply air duct work. 5. Adapt the equipment to the existing gas piping, electrical circuit, vent piping and condensate pump. 6. Provide and install new supply and return air grilles onto the equipment. 7. Provide and install an additional 10X6 supply register in the basement the storage room adapting to the main furnace supply trunk line. 8. Install the existing thermostat in the garage space providing new control wiring. 9. Test equipment operation.

SCOPE OF WORK: 1. Remove the existing Lennox furnace located in the garage and cap the three supply branch runs entering the home at the wall. - Cap the supply air register serving the garage from the existing main Lennox furnace. 2. Provide and install new plywood sheeting over the existing plywood return air box. 3. Provide and install a new return air filter cabinet base onto the plywood base. 4. Re-install the existing Lennox furnace onto the new filter cabinet base and adapt to the existing supply air duct work. 5. Adapt the equipment to the existing gas piping, electrical circuit, vent piping and condensate pump. 6. Provide and install new supply and return air grilles onto the equipment. 7. Provide and install an additional 10X6 supply register in the basement the storage room adapting to the main furnace supply trunk line. 8. Install the existing thermostat in the garage space providing new control wiring. 9. Test equipment operation.
